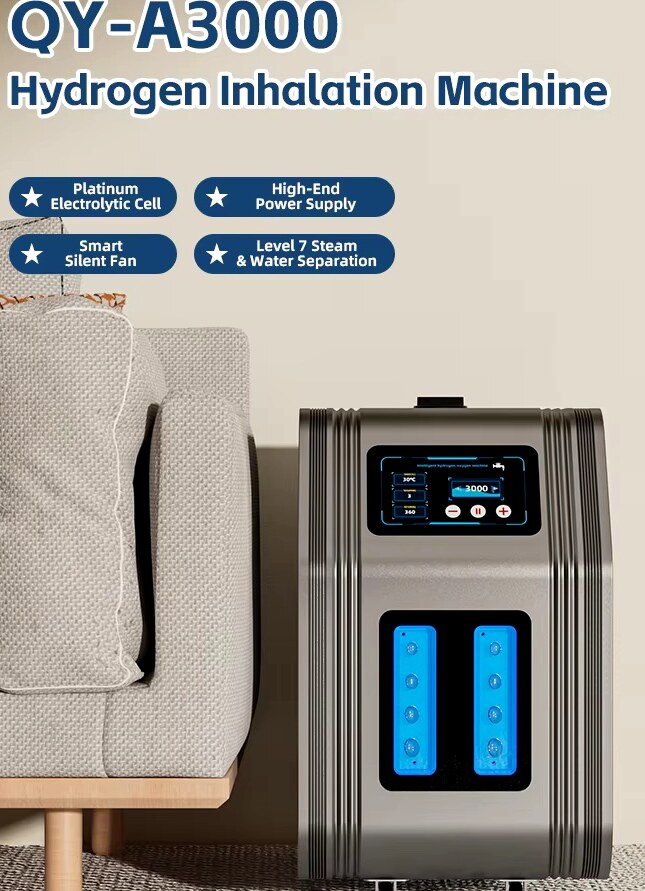

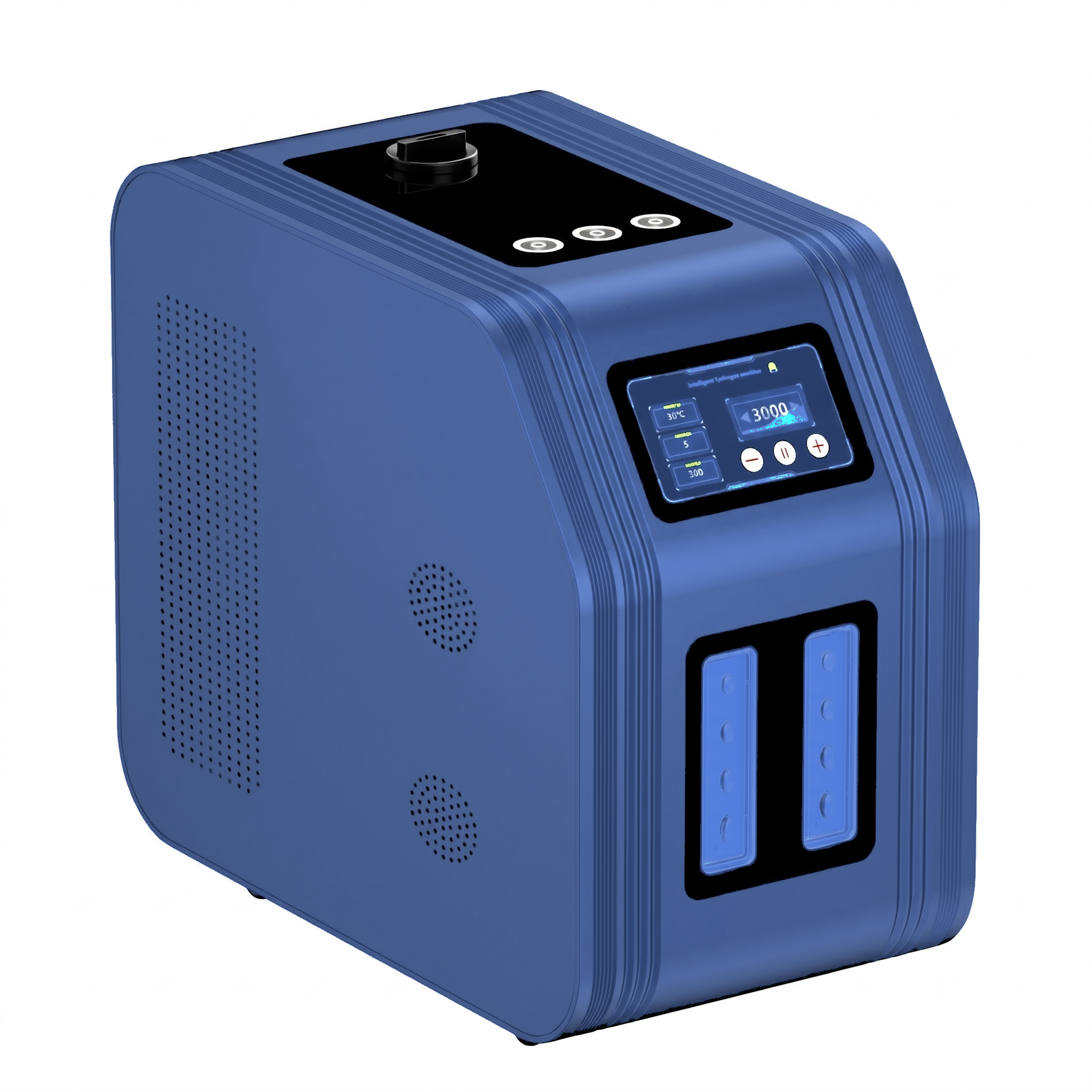

- Model
- QY-A3000
- Total gas output (H₂ + O₂)
- 3000 ml/min (natural 2:1 ratio)
- Pure hydrogen stream
- 2000 ml/min at 99.991% purity
- Pure oxygen stream
- 1000 ml/min at >99% purity (separated at the membrane)

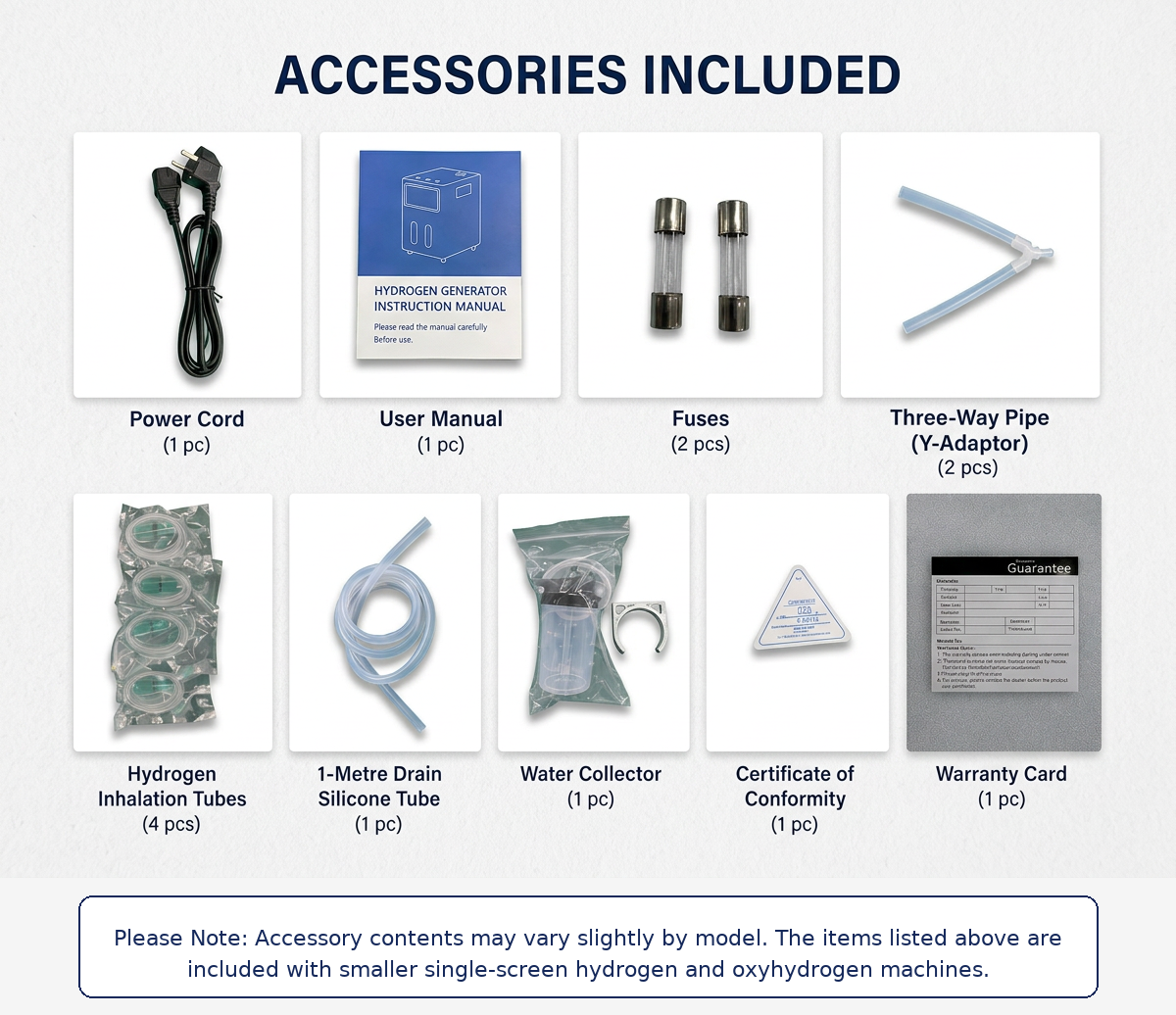

- Combined H₂ + O₂ flow
- Up to 3000 ml/min via included Y connector (2:1)
- Flow control
- Three-speed adjustable (low / medium / high)
- Outlets
- Three independent outlets — share between multiple users

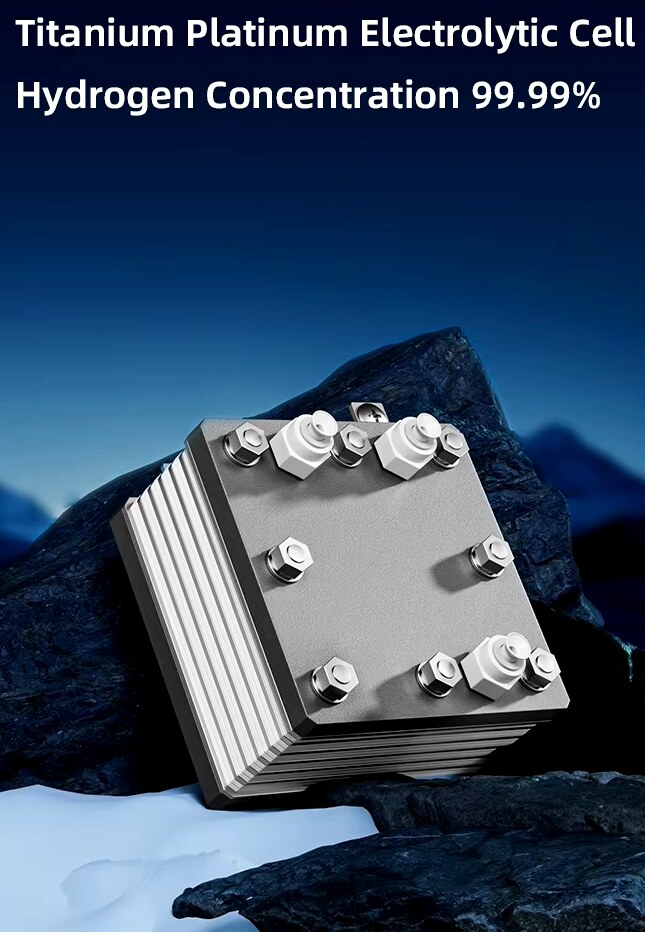

- Membrane
- SPE / PEM hydrogen-separation stack
- Session timer
- 30-minute steps, up to 360 minutes auto-shutdown
- Sterilisation
- Built-in UV sterilisation lamp
- Continuous operation
- Up to 365 days without changing the water
- Output safety
- Ozone-free, carbon-monoxide-free
- Water source
- Purified water or distilled water
- Water temperature
- 0–60 °C operating range
- Chassis
- Galvanised steel with bottom wheels
- Voltage
- 100–240 V universal input
- Noise level
- ≤ 55 dB at 1 m on high (≤ 48 dB on low — three-speed mute module)
- Power
- 800 W
- Weight
- 14 kg
- Dimensions
- 235 × 420 × 365 mm
- Rated PEM stack service life
- 10,000 hours (≈10 years at 45 min/day)
- Warranty
- 12 months, direct from manufacturer
